德国BAQ kaloMAX NT Ⅱ型 耐磨测试仪、磨耗试验机

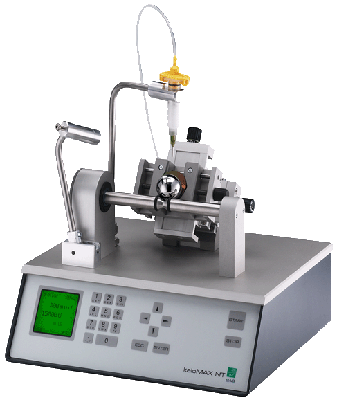

BAQ kaloMAX NT II

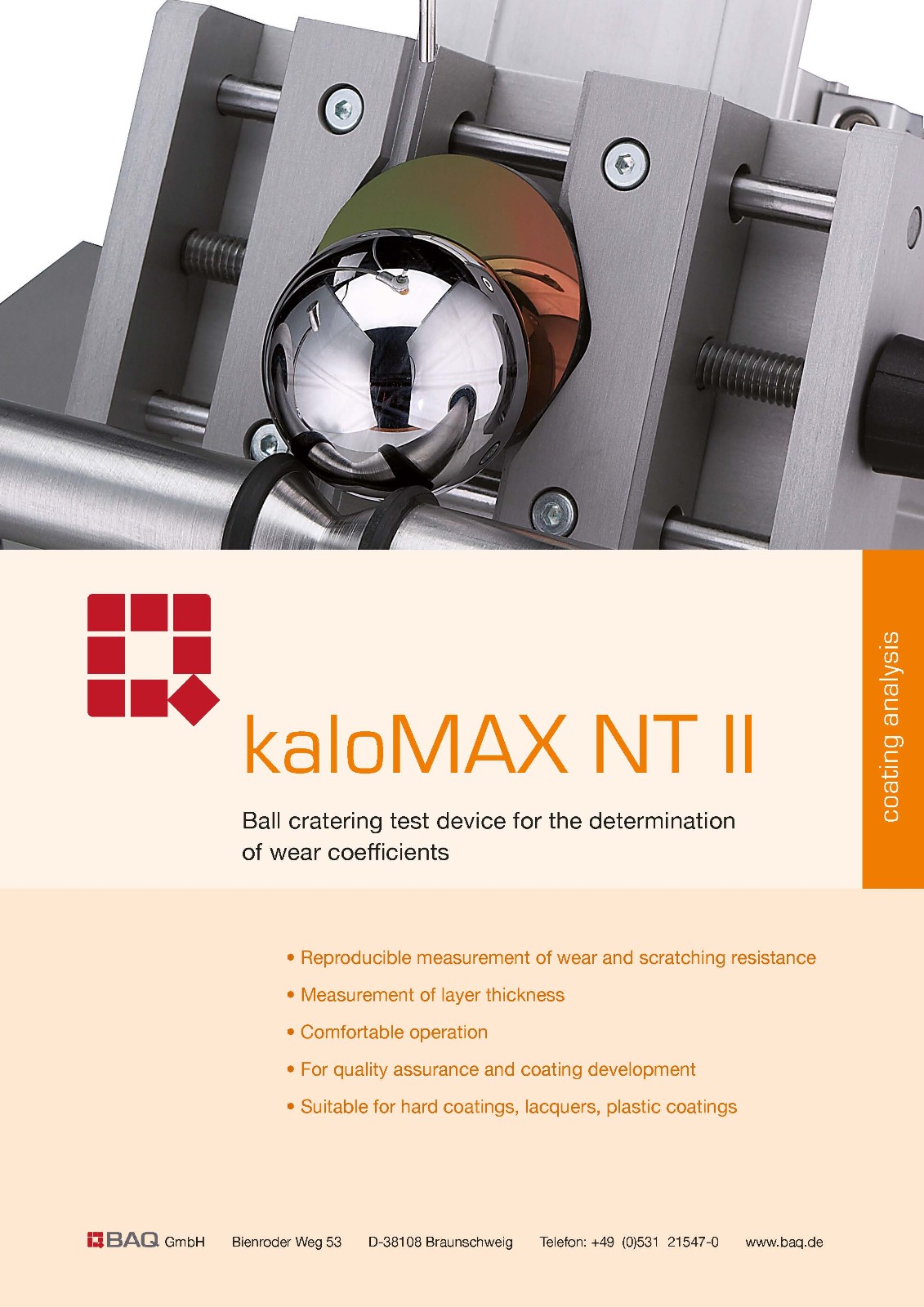

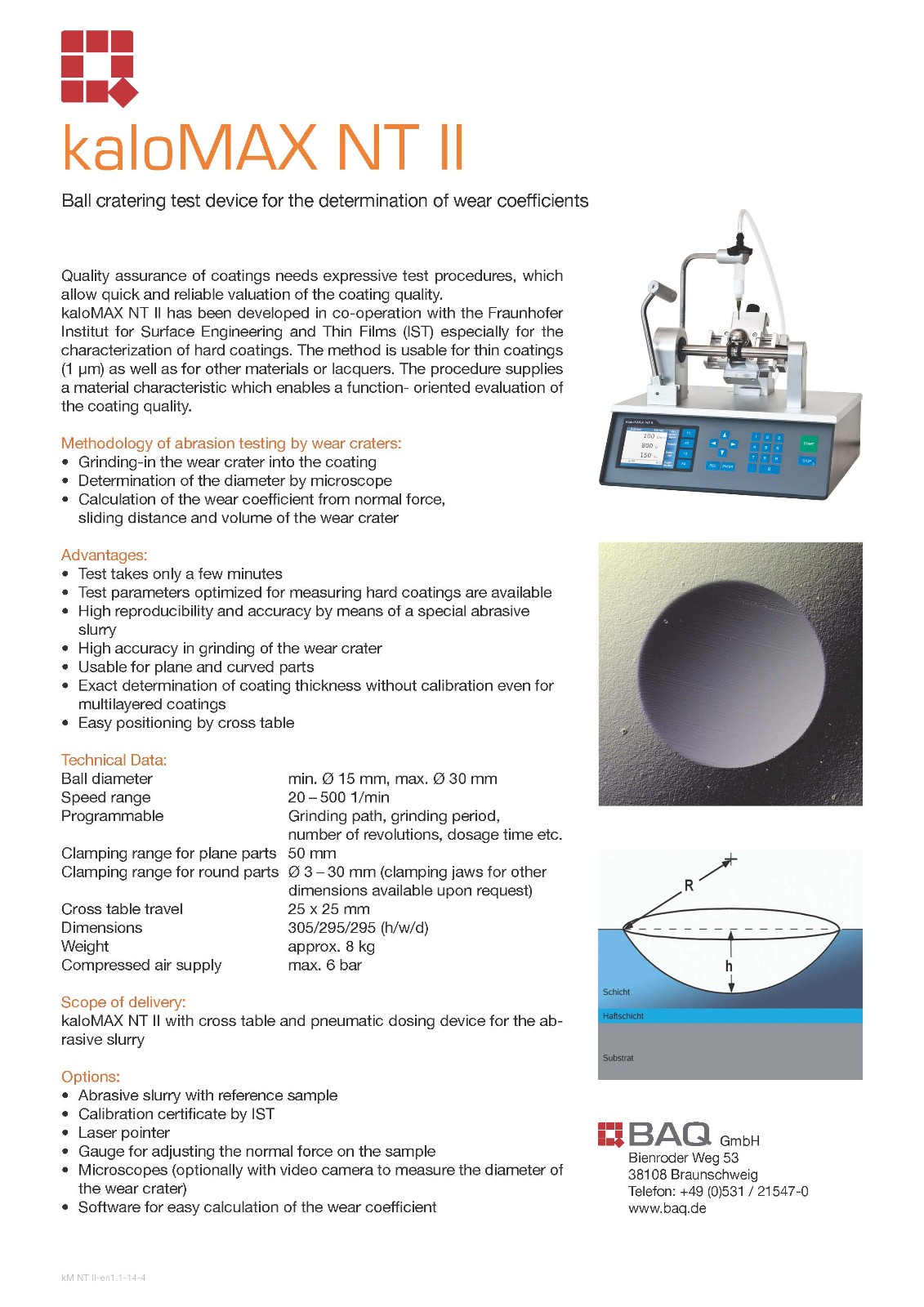

Ball cratering test device for the determination of wear coefficients
性能特点 Performance characteristics
Quality assurance of coatings needs expressive test procedures, which allow quick and reliable valuation of the coating quality.
涂料的质量保证需要表现的测试程序，它允许镀层质量的快速和可靠的评估。
kaloMAX NT II has been developed in co-operation with the Fraunhofer Institut for Surface Engineering and Thin Films (IST) especially for the characterization of hard coatings. The method is usable for thin coatings (1 μm) as well as for other materials or lacquers. The procedure supplies a material characteristic which enables a function- oriented evaluation of the coating quality.
kaloMAX NT II已经与弗劳恩霍夫研究所表面工程与薄膜（IST）合作开发了特别喜欢的硬质涂层的表征。该方法是为薄涂层（1微米），以及其他材料或漆使用。该程序提供了一个材料特性使镀层质量的功能导向的评价。
Methodology of abrasion testing by wear craters:
测试磨损方法论磨损陨石坑：
? Grinding-in the wear crater into the coating
?磨削中的磨损陨石坑到涂料
? Determination of the diameter by microscope
?直径显微镜测定
? Calculation of the wear coefficient from normal force,sliding distance and volume of the wear crater
?正常力的磨损系数的计算，滑动距离和体积的月牙洼磨损的
Advantages:
优点：
? Test takes only a few minutes
?测试只需要几分钟的时间
? Test parameters optimized for measuring hard coatings are available
?用于测量硬质涂层优化测试参数可用
? High reproducibility and accuracy by means of a special abrasive slurry
?高重复性和准确性由特殊的研磨浆手段
? High accuracy in grinding of the wear crater
?在磨损陨石坑磨削精度高
? Usable for plane and curved parts
?平面和曲面零件可用
? Exact determination of coating thickness without calibration even for multilayered coatings
?精确测定涂层的厚度，甚至没有为多层膜校准
? Easy positioning by cross table
?轻松定位交叉表
■ Reproduzierbare Messung von Verschlei?festigkeit / Kratzfestigkeit
- 耐磨性的可再现性测量/耐刮擦性
■ Messung der Schichtdicke
- 厚度测量
■ Komfortable Bedienung
-便捷的操作
■ Für Qualit?tssicherung und Schichtentwicklung
- 质量保证和层发展
■ Geeignet für Hartstoffschichten, Lacke, Kunststoffbeschichtungen
- 适于硬涂料，油漆，塑料涂料
技术指标 Technical indicators
■ Ball diameter min. ? 15 mm, max. ? 30 mm
■ Speed range 20 – 500 1/min
■ Programmable Grinding path, grinding period,number of revolutions, dosage time etc.
■ Clamping range for plane parts 50 mm
■ Clamping range for round parts ? 3 – 30 mm (clamping jaws for other
■ dimensions available upon request)
■ Cross table travel 25 x 25 mm
■ Dimensions 305/295/295 (h/w/d)
■ Weight approx. 8 kg
■ Compressed air supply max. 6 bar
标准配置 Standard configuration

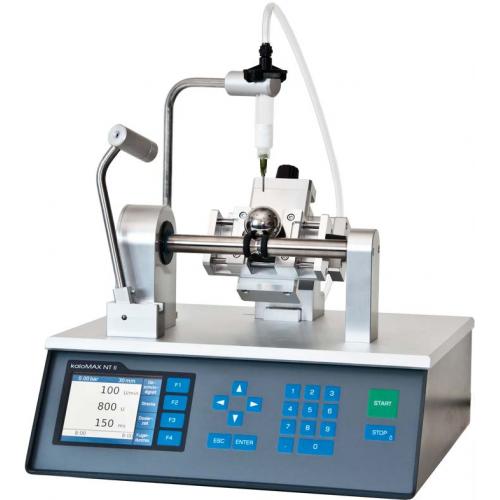

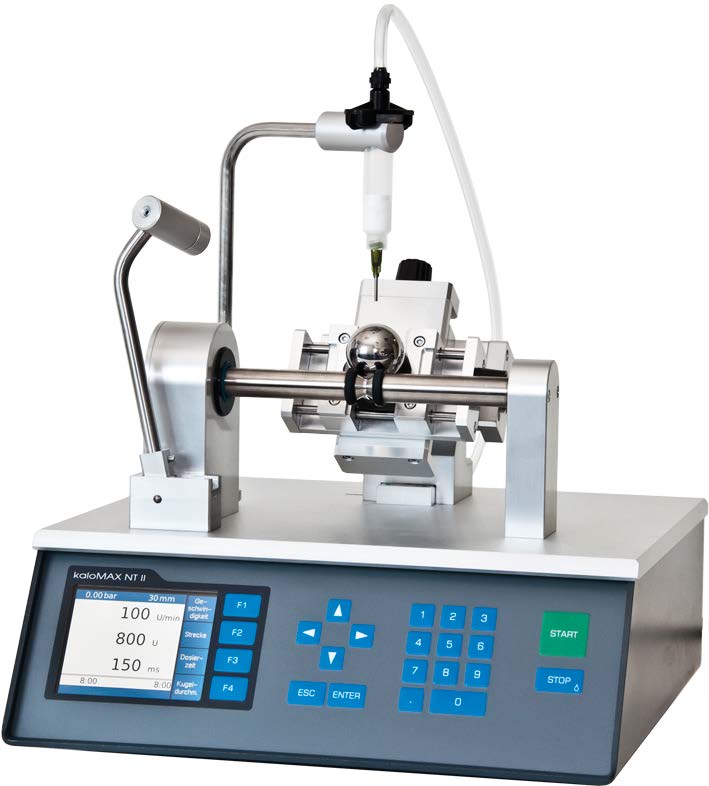

kaloMAX NT II with cross table and pneumatic dosing device for the abrasive slurry
Options:
? Abrasive slurry with reference sample
? Calibration certificate by IST
? Laser pointer
? Gauge for adjusting the normal force on the sample

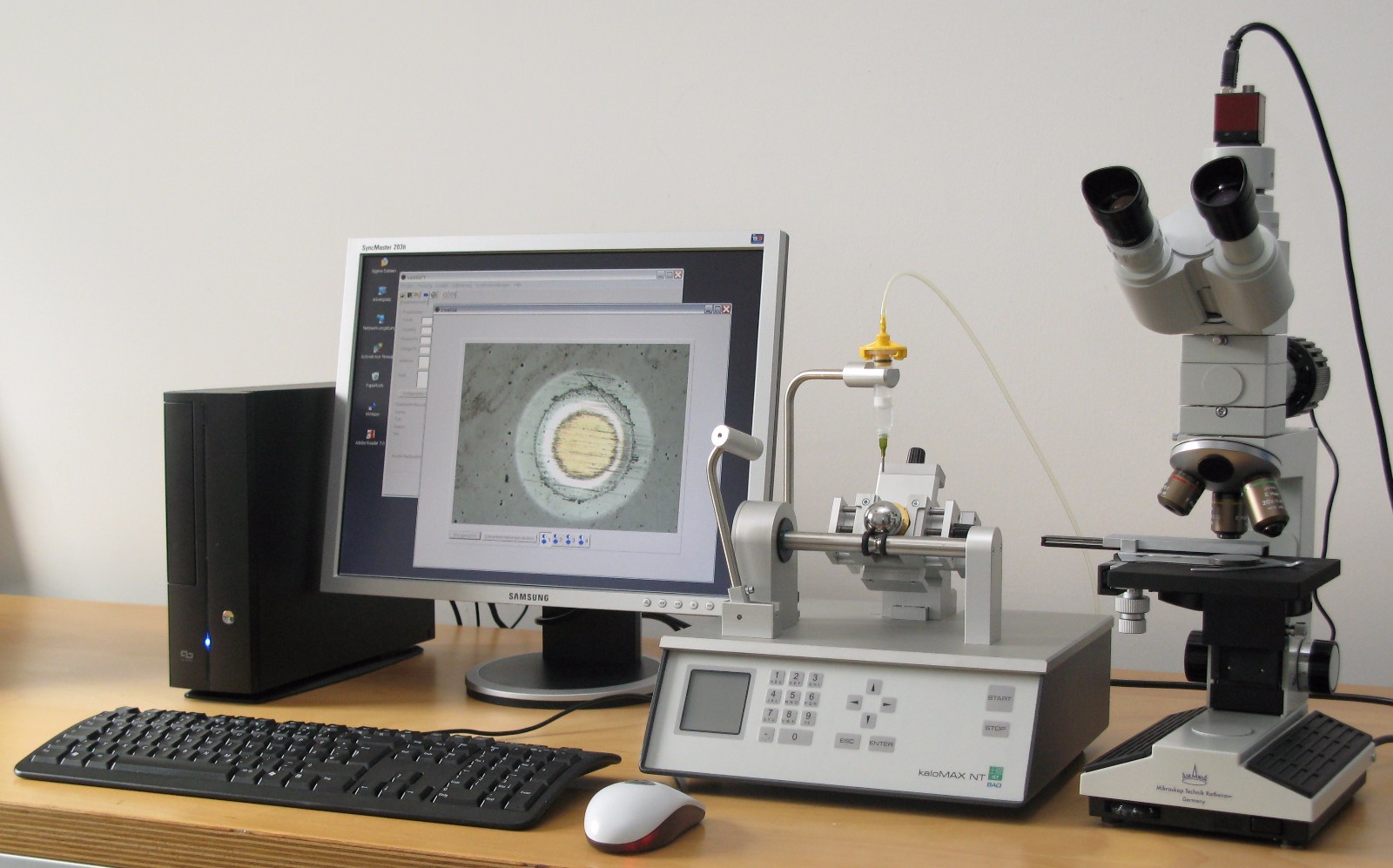

? Microscopes (optionally with video camera to measure the diameter of the wear crater)
? Software for easy calculation of the wear coefficient
